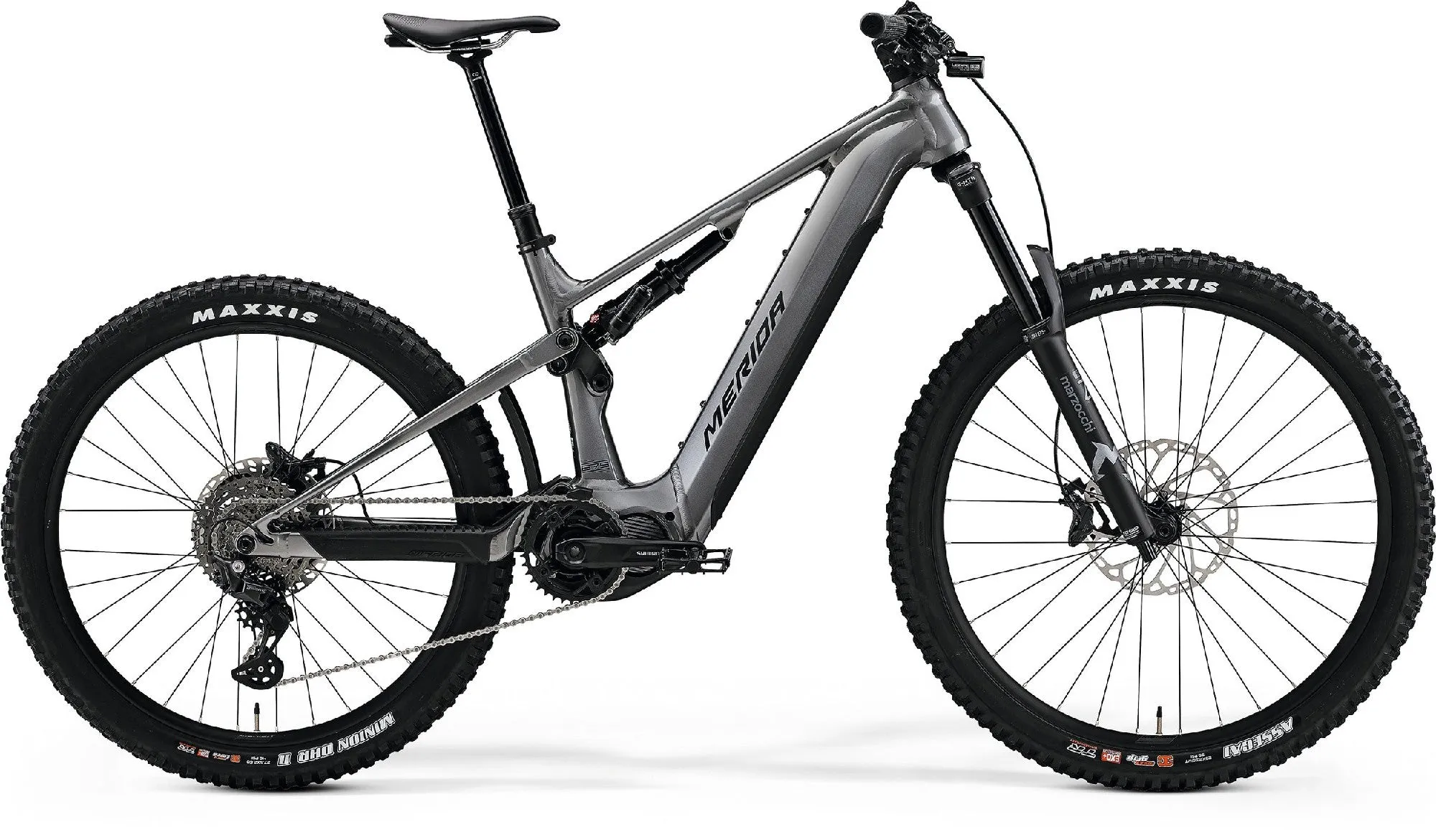

Merida eOne Sixty 675 / Electric Bike
Say hello to a huge range and ride fun without saying goodbye to your budget. The eONE-SIXTY 675 gets a durable aluminium frame and user-removable 750 Wh battery with an optional 360 Wh range extender, but we combine our award-winning handling and suspension with wallet-friendly kit to give you maximum bang for your buck. A stout Marzocchi Z1 170 mm fork and Bomber Air shock keep trail chaos under control, while the Shimano Deore Linkglide drivetrain is tough enough for e-bike use, day in, day out.
With the new eONE-SIXTY, the next descent is always about to start. With an all-aluminium frame, it offers maximum value and maximum battery range, thanks to a powerful drive unit paired with a removable 750 Wh battery and optional 360 Wh range extender. The only reason to stop will be because you have to. With our incredibly capable geometry derived from the award-winning ONE-SIXTY enduro range, we've got handling that'll help you conquer the toughest climbs as well as the most grin-inducing descents, while our proven FAST kinematic suspension will take care of anything the trail throws at it. This low-maintenance flexstay design offers 174 mm of rear wheel travel to go with 170 mm at the front, with size-tuned progression to maximise performance for all sizes of riders. You can run it with the latest coil shocks without any worries too. With mixed size 29" front and 27.5" rear wheels as standard for playful handling, you can switch to a focussed full 29er setup without messing up the geometry, thanks to our flip chip design. With low standover heights across all sizes, you can choose between a longer frame for more stable handling or a shorter one for an agile feel, while some models feature our ground-breaking 30-230 mm travel-adjustable dropper post.
Specifications subject to change without notification
01. FRAME eONE-SIXTY LITE IV; MAT aluminium; 174 mm STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh
02. SIZES Short - Mid - Long - XLong
03. FORK Marzocchi Z1 eMTB; Air; 170 STR; Tapered; 44mm fork offset; 29x2.6" max WHS
04. REAR SHOCK Marzocchi Bomber Air; platform
05. DRIVE UNIT Shimano EP801; 85Nm
06. BATTERY Trendpower Internal Battery Gen 2; 750Wh
07. BATTERY CHARGER Trendpower EU Charger; 4A
08. DISPLAY Shimano SC-EM800
09. MODE SWITCH Shimano SW-EM800-L
10. REAR DERAILLEUR Shimano Deore RDM5130 LinkGlide 10
11. SHIFTERS Shimano XT M5130 10
12. DROPPER POST LEVER Shimano SL -MT500-L
13. BRAKE - FRONT Shimano Deore M6120; 4 piston
14. BRAKE - REAR Shimano Deore M6120; 4 piston
15. ROTOR - FRONT Shimano RT64; 220 mm
16. ROTOR - REAR Shimano RT-EM910; 203 mm
17. CHAINRING FSA 1x Steel Chainring; 36 ATC
18. CRANK Shimano FC-EM600; 165 mm for all sizes
19. CHAIN Shimano LG500
20. CASSETTE Shimano LG400; 11-43 ATC; 10 GER
21. PEDALS VP VPE-527
22. HANDLEBAR MERIDA EXPERT eTR; 780 WHB; 20 RHB
23. HANDLEBAR STEM MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount
24. STEM LENGTH 40 mm all sizes
25. HEADSET Acros ICR MERIDA EXTERNAL neck w/ Blocklock
26. SEAT POST MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M/L: 200 SPT - XL: 230 SPT
27. SADDLE MERIDA EXPERT CC; V-mount
28. HUB - FRONT Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
29. HUB - REAR Shimano TC600-HM-B; 148x12 WHR; 32 SPH; Centerlock
30. AXLE - REAR MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
31. RIMS MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
32. TYRE - FRONT Maxxis Assegai; 29x2.5 "; fold; TR EXO 3C MaxxGrip
33. TYRE - REAR Maxxis DHR II; 27.5x2.6 "; fold; 3C EXO TR
34. LIGHT FRONT LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
35. LIGHT REAR LEZYNE LED FEMTO USB REAR STVZO
36. OTHER MERIDA Multitool with saddlebox
37. MAX RIDER WEIGHT 140kg
Absolute fun off road. Huge capabilities in one ebike. We stock a great range of ebikes at Wollongong Bike Hub for on and off road riding. Our friendly team can help you choose something to suit your ride style and budget. All bikes come fully assembled with 12 months FREE general servicing.
