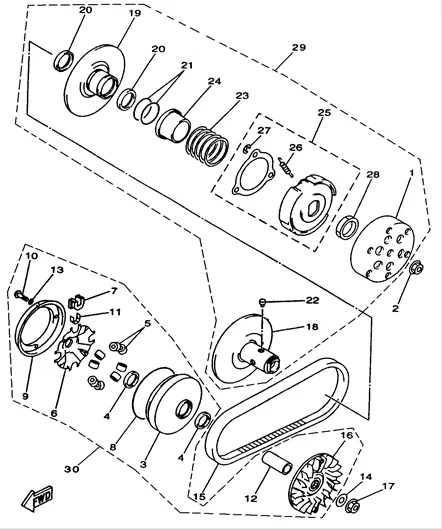

QZ300 E32 Clutch
Part Name:
- 1 CLUTCH HOUSING COMP. of ATV300-D T3b
- 2 NUT of ATV300-D T3b
- 3 PRIMARY SLIDING SHEAVE COMP of ATV300-D T3b
- 4 OIL SEAL of ATV300-D T3b
- 5 WEIGHT of ATV300-D T3b
- 6 CAM of ATV300-D T3b
- 7 SLIDER of ATV300-D T3b
- 8 O-RING 115X2.5 of ATV300-D T3b
- 9 STOPPER of ATV300-D T3b
- 10 PAN HEAD SCREW M4X12 of ATV300-D T3b
- 11 SPACER 1 of ATV300-D T3b
- 12 COLLAR of ATV300-D T3b
- 13 WASHER PLATE 4 of ATV300-D T3b
- 14 WASHER PLATE of ATV300-D T3b
- 15 V-BELT LOGO "MITSUBOSHI" of ATV300-D T3b
- 15 V-BELT LOGO "GATES" USED FOR EXCEPT FRANCE
- GERMANY CUSTOMERS of ATV300-D T3b
- 16 SHEAVE PRIMARY FIXED of ATV300-D T3b
- 17 NUT of ATV300-D T3b
- 18 SECONDARY FIXED SHEAVE of ATV300-D T3b
- 19 SECONDARY SLIDING SHEAVE of ATV300-D T3b
- 20 OIL SEAL47X41X4 of ATV300-D T3b
- 21 O-RING 46.2X2 of ATV300-D T3b
- 22 PIN GUIDE of ATV300-D T3b
- 23 COMPRESSION SPRING of ATV300-D T3b
- 24 SEAT SECONDARY SPRING of ATV300-D T3b
- 25 CLUTCH CARRIER ASSY of ATV300-D T3b
- 26 CLUTCH WEIGHT SPRING 1 of ATV300-D T3b
- 27 CIRCLIP 8 of ATV300-D T3b
- 28 NUT M36X1.5 of ATV300-D T3b
- 29 DRIVEN ASSY COMPLETE of ATV300-D T3b
- 30 DRIVE ASSY COMPLETE of ATV300-D T3b
